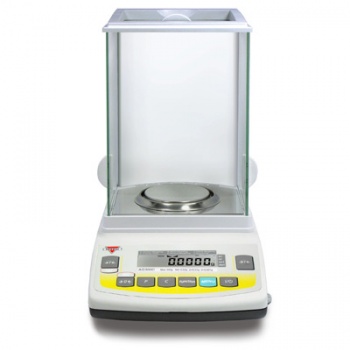

Torbal Advanced-Plus Series Analytical Balance
About Torbal
Scientific Industries acquired Torbal™ in early 2014. Scientific Industries was founded in 1954 with a focus on rugged and reliable laboratory products.
Torbal™ dates back to the 1800's when it became famous for its superior weighing mechanisms, which were based on the Torsion design. During the 20th Century, Torbal EA-1 Analytical Scales, and DRX Prescription models became the balances of choice for laboratories, schools, and pharmacies throughout the United States.
In 2003, while part of Fulcrum Inc, the company developed an exclusive alliance with one of the largest precision scale manufacturers in Poland, and reintroduced the TORBAL brand with high quality precision scales and analytical balances. By 2006 Fulcrum Inc. received Weights and Measures NTEP certifications for five precision class II models.
Today, the TORBAL success continues with some of the most advanced precision, laboratory, and analytical scales available on the market. The line has recently expanded to include moisture analyzers, force gauges, and industrial scales.
TORBAL Precision scales are constructed with highest quality parts and components. With a robust die-cast metal housing, a superior force restoration load cell, and features such as Automatic Internal Calibration, we are able to guarantee accuracy, quality and reliability at all times.
Scientific Industries offers excellent warranties on all its products, and views customer service and support as its highest priority and obligation. Most scales always ship free and include lifetime technical support, as well as free telephone training.
Features
- Ideal for use in any Analytical Application
- 8 weighing functions and 7 weighing units
- Easy access Weighing Chamber
- Automatic Internal Calibration
- Large LCD Display
- RS232 Interface Port
- Accurate and easy to use leveling system
- Robust die-cast metal housing
- Used capacity indicator
- Spill-proof Sealed front panel
- Data Printing
- Stability and Net weight indicators
- Center of zero indicator
- Automatic zero setting mechanism
- Initial zero setting mechanism (IZSM)
- 2 year warranty
The "Advanced Plus" series top-loading analytical balance series is a budget-friendly easy-to-use analytical balance series with automatic calibration. The internal calibration mechanism keeps the scale calibrated at all times therefore eliminating the need for external calibration; the scale is essentially maintenance free. In addition, the scale includes 5 weighing functions, a large glass weighing chamber, die-cast metal housing, and RS232 interface port for PC connectivity.
Available Modes
- Weighing
- Parts Counting
- Percent Weighing
- Density
- Totalizing
Units
Available Models
|
Product Code
|
Description
|
|
AGCN120
|
120 g x 0.0001 g Readability "Advanced Plus" Top-Loading Analytical Balance with Automatic Calibration from Torbal, Each
|
|
AGCN220
|
220 g x 0.0001 g Readability "Advanced Plus" Top-Loading Analytical Balance with Automatic Calibration from Torbal, Each
|
Included with Purchase (Standard Model)
- 1 x Torbal Scales Advanced Plus Series Scales Unit
- 1 x Power Supply (AC) & Instruction Manual
Accessories
Weights
High precision Troemner stainless steel weights. The material utilizes stainless steel alloy, possessing closely controlled density, low magnetic susceptibility, good stability and resistance to corrosion and handling damage. Weights are available in the following weights: 50 g, 100 g, 200 g, 300 g, 500 g, 1 kg, and 2 kg.
TC-105
Stainless steel set furnished in hinged, cover box with stainless steel forceps. This weight set is adjusted to N.B.S. Class "C" Tolerances.
Specifications
| Metric |
50 grams - 10 mg |
| Apothecary |
4 drams - 1/2 grain |
------------------------------------------------------------------------------------
TC-106
50 g; 1 g Metric & Apothecary Weight Set. Brass set furnished in hinged, cover box with stainless steel forceps. This weight set is adjusted to N.B.S. class "C" Tolerances.
Specifications
| Metric |
50 grams - 1 g |
| Apothecary |
4 drams - 1 scrupple |
-----------------------------------------------------------------------------------
TS-121
Set supplied in wood box with forceps. This weight set is adjusted to class "F" Tolerances.
Specifications
| Metric |
50 grams - 10 mg |
| Apothecary |
2 oz - 1/2 grain |
Accessories - Software
Most Torbal software is available for download free of charge. The software is designed to enhance the scale's functionality when connecting to a PC. Each application is compatible with all Torbal precision and industrial scales as well as analytical balances. Torbal software apps allow users to gather and process weighing data on windows operating system computers. Weighing data transferred from the scale can be exported to other programs or directly linked to third party applications.
ProCell
ProCell serves as a link between Torbal scales and third party software applications. When in use, it will transfer weighing data into any data field of a desired application. Simply point the typing cursor into a data field and the weighing result will be transferred to its destination.
This allows the users to save valuable time by avoiding copying and pasting data or typing it manually. i.e. if an Excel spreadsheet is used into which data must be recorded, simply employ ProCell, then open the spreadsheet, place the typing cursor in a desired cell or field and initiate data transfer from the scale. The data will appear in the field containing the cursor.
To access the PC Communication Protocol PDF sheet, please see www.torbalscales.com/software/procell.html.
-------------------------------------------------------------------------------------------------------
Accessories - Connectivity
USB Adapter BA
The Torbal USB adapter provides a bi-directional bridge between a USB bus and the RS-232C serial port located on Torbal scales. Once installed any Torbal scale can be connected to any PC via a USB cable. The adapter is particularly useful when connecting a Torbal precision scale or balance to a PC that lacks a standard RS232 port. The adapter is furnished with a pre-connected crossover link that assures compatibility with Torbal scales, as well as a USB cable and a CD which includes all necessary drivers.
STAT
The STAT software is designed to function with all Torbal precision, industrial and laboratory scales. The software collects weighing result and performs all most commonly used statistical calculations. The STAT allows you to obtain results from the scale manually or automatically. Results can be received at a user specified time rate, as well as for a specified number of results. The software allows you to collect an unlimited number of results for statistical analysis. STAT allows you to print reports of the results with a date and time stamp. Results can be exported into a text file or spreadsheet programs. STAT automatically calculates statistical parameters such as Min, Max, Average, Max and Min Delta, Histogram, as well as a line graph of results taken versus time.
Communications
Torbal communications is a simple, but very useful application that allows Torbal scales and balances to connect and transfer data to a windows PC. The software operates in two different view modes. The "display" mode shows weighing data in real time while transmitting results continuously. The "window" mode records data as it is trasnferred from the scale to the PC. The data can then be exported to other software or data formats such as MS Excel or MS Word. Data can also be saved directly into a file. Torbal Communications allows users to control the scale directly from the PC. The scale can be tared, zeroed, initiated to a weighing result, as well as turned OFF or ON.
RS232 Cable
A shielded 8' RS232 DB9 female to DB9 male pre-configured cable that will connect any Torbal Scale or Balance to a standard 9-pin RS232 connection found on a PC or peripheral device.
Thermal Printer TP1
Create printed records of weighing transactions; quickly and easily print the weighing result as well as date and time, and GLP information such as model number, unit id number and project number. Results are recorded on 4.3 inch (110 mm) thermal printer paper (no ink ribbons). Unit prints 0.8 lines per second, 40 characters per line at 9600 bps. Unit features self test and diagnostics for easy configurations. Printer comes with AC adapter for 110vac, 60 Hertz operation, interconnect cable, one roll of paper, and operations manual. The unit measures 6.5w x 5.5d x 2.0h inches or 165 x 140 x 50 mm and weighs 1.0 pounds (0.45 Kg).
Specifications
| Model |
RXP-4 |
| Printing Speed |
0.8 lines per second |
| Printing Characters |
40 per line |
| Transmission Speed |
9,600 baud |
| Transmission Format |
8 bits |
| Paper |
Thermal, 4.3" W |
| Size |
16.5 x 14.0 x 5.0 cm |
| Weight |
1.0 pound |
| Temperature |
+5° to +35° C |
| Interface |
RS232C DIN6 |
| Power Supply |
120 V AC, 60 Hz, 50 W |
Specifications
| Product Code |
AGCN120 |
AGCN220 |
| Maximum Capacity |
120 g |
220 g |
| Readability (d) |
0.0001 g |
| Repeatability (Standard Deviation) |
0.0001 g |
| Linearity |
± 0.0002 g |
| Stabilization Time (typical) |
Approximately 3 seconds |
| Calibration |
Internal and Automatic |
| Tare Range |
-100 g |
-200 g |
| Accuracy Class |
I |
| Pan Dimensions |
3.5 Inches, 9.0 cm |
| Scale Dimensions |
8.5 x 13.6 x 13.7 Inches, 21.6 x 34.5 x 34.7 cm |
| Operating Temperature |
+15° - +30° C |
| RS232 Port |
Bidirectional |
| Warranty |
2 Years |
