Aspire Laboratory Aspirator from Benchmark, 115 V

Aspire Laboratory Aspirator from Benchmark

Features

• Compact design
• Built-in Vacuum Pump
• Adjustable Vacuum Pressure
• Vacuum Gauge
• Safe and Precise Aspiration

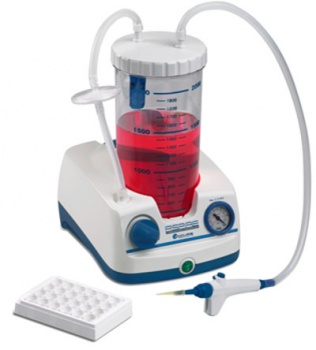

The Accuris ASPIRE Laboratory Aspirator incorporates a quiet, maintenance-free pump inside a sturdy, yet compact base. The vacuum is fully adjustable, with a pressure gauge that displays the vacuum level, allowing full control of aspirating speed. The ASPIRE is an ideal choice for a wide range of laboratory aspirating applications, including removal or media from tissue culture vessels or plates, and supernatants. An ergonomic, hand-held aspirating device is included, and holds standard 200-300ul disposable pipette tips.

The collection bottle incorporates a reliable overflow protection valve that closes off the tube to the vacuum in the event of a full bottle. In addition, the replaceable in-line filter protects the vacuum pump from contaminants and any moisture that comes through the bottle. Graduations on the collection bottle indicate the amount of fluid collected and when it's ready to be emptied. The Handheld Vacuum PIpettte has an ergonomic design that's comfortable in the hand during prolonged use. Pressing the button applies the vacuum. The pipette accepts Pasteur pipettes, serological pipettes, and also comes with 2 accessory pipette cones. One cone is designed to accommodate 200/300 ul pipette tips, the other has a thin, stainless steel capillary for fine control aspirating.

Available Models

Product Code	Description
BENV0020	Aspire Laboratory Aspirator, 115 V, Each

Included with Purchase

1 x Benchmark Aspire Laboratory Aspirator, including:

• Base with Internal Vacuum Pump
• 2-Litre Polycarbonate Bottle with Lid
• Silicone Tubing
• Antibacterial / hydrophobic filter
• Handheld Vacuum Controller
• Adapters for Single Channel Pipette
  • for 200 µl Tips
  • 40 mm Fine Stainless Steel
• 1 x Power Cord & Instruction Manual

Accessories

Product Code	Description
BENV1002-1SL	Extra-Long (80 mm) Stainless Steel Single Channel Adapter, Each
BENV1002-8	Eight Channel Adapter, for use with 200 µl Pipette Tips, Each
BENV1002-S8	Fine Tip Stainless Steel Eight-Channel Adapter, Each
BENV1002	Handheld Vacuum Controller with 3 Single Channel Adapters Included, Each
BENV0020-F1	Hydrophobic Filter, 5/Pack
BENV0020-QD	Quick Disconnect Kit. Includes: 2 Male/Female Attachments and Silicone Tubing, Each
BENV0020-BOT	PC Collection Bottle, Graduated, Each
BENV0020-TB	Extra Tubing Set, Length: 1 meter, Each
BENV0020-SG	Silicone O-ring for Aspire 2000ml PC Collection, Each

Specifications

	BENV0020, Accuris Aspire Laboratory Aspirator, 115 V
Maximum Aspiration	14 ml / second
Maximum Flow	15 L / minute
Vacuum Range	-30 mbar to -750 mbar
Noise Level	59.6 dB
Vacuum Pump	Oil free, piston pump
Dimensions (L x W x H)	9.5 x 7.9 x 13.5 Inches, 24 x 20 x 34 cm
Weight	4.8 lbs, 2.2 kg
Electrical	115 V, 60 Hz
Warranty	2 Year Manufacturer's Warranty
