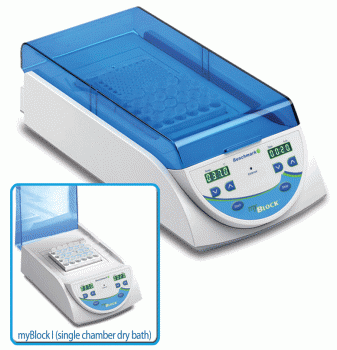

myBlock I Digital Dry Bath from Benchmark Scientific, 120V

myBlock I Digital Dry Bath from Benchmark Scientific

Features

Digital temperature control (set and walk away)
Hinged lid (improves uniformity and conserves energy)
External (optional) temperature probe (measures actual sample temperature)
Available with Quick-Flip universal blocks for microtubes (supports all common tube sizes, PCR strips and PCR plates)

Benchmark's myBlock series is a "next generation" product line that introduces several major advantages over traditional dry baths. They are the first digital dry bath to include advanced microprocessor controls, timed or continuous operation and a removable hinged lid. In addition, an optional external temperature feedback probe can be positioned directly inside a sample tube, providing real-time control and monitoring of actual sample temperature.

The myBlock's transparent lid helps to promote better uniformity and minimize temperature stratification in the block by maintaining a warm air jacket layer. It also helps to reduce energy consumption by minimizing heat loss to the environment. The hinged lid can be flipped open (to the rear) or easily removed (lifted off) to accommodate taller tubes.

Both the single and dual block models can be ordered in a configuration that includes our unique Quick-Flip^TM blocks. These universal blocks accept tubes from 0.5 to 2.0 ml and, with just a quick flip to the other side, accommodate 0.2 ml tubes, PCR strips or (in the dual-block model only) a PCR plate. Other blocks are available for tubes up to 50 ml.

Available Models

Product Code	Description
BENBSH5001-1B	Benchmark myBlock^TM I Dry Bath, Single Position w. Quick Flip Universal Block, 115 V, Each
BENBSH5002-2B	Benchmark myBlock^TM II Dry Bath, Dual Position w. Quick Flip Universal Block, 115 V, Each
BENBSH5001	Benchmark myBlock^TM I Dry Bath, Single Position without Quick Flip Universal Block, 115 V, Each
BENBSH5002	Benchmark myBlock^TM II Dry Bath, Dual Position without Quick Flip Universal Block, 115 V, Each

Included with Purchase

1 x Benchmark Digital Dry Bath Unit
Model BSH5001-1B & BSH5002-2B include one quick flip universal block
1 x Power Cord and Instruction Manual

Available Blocks

Product Code	Description
BENBSWCMB	Quick-Flip^TM Universal Block. Side 1 Holds 24 x 1.5/2.0 ml & 14 x 0.5 ml Tubes. Side 2 Holds 6 x PCR strips, 48 x 0.2 ml tubes or 1 PCR Plate, Each
BENBSW1500	Block for 24 x 1.5 ml Tubes, Each
BENBSW1520	Block for 24 x 1.5/2.0 ml Tubes, Each
BENBSW05	Block for 24 x 0.5 ml Tubes, Each
BENBSW15	Block for 12 x 15 ml Tubes, Each Block Height: 3.25 Inches
BENBSW50	Block for 5 x 50 ml Tubes, Each Block Height: 3.25 Inches
BENBSW10	Block for 20 x 10 mm Tubes or 20 x 2.0 ml Tubes, Each
BENBSW13	Block for 20 x 13 mm Tubes or 20 x 5/7 ml Blood Tubes, Each
BENBSW1516	Block for 12 x 15-16 mm Tubes or 12 x 10 ml Blood Tubes, Each
BENBSW02	Block for 48 x 0.2 ml Tubes or 6 PCR Strips, Each
BENBSWPCR2	96-well PCR-Plate Block, Each For 2 & 4 Block Models Only
BENBSWPCR1	96-well PCR-Plate Block, Each For Single Block Models Only
BENBSWMT	Microplate Block, Each For 2 & 4 Block Models Only
BENBSW01	Solid Block for Slides or Custom Machining, Each

Accessories

Product Code	Description
BENBSH-TP1	Optional External Temperature Probe, Each

Specifications

	BENBSH5001	BENBSH5002
Temperature Range	Ambient +5° - 105° C
Temperature Accuracy	± 0.1° C
Temperature Increments	0.1° C
Temperature Uniformity	± 0.3° C
Timer	1 minute to 48 hours or continuous
External Dimensions (W x D x H)	7 x 10 x 5 Inches, 18 x 25 x 13 cm	6.3 x 14.5 x 5 Inches; 16 x 36.4 x 13 cm
Weight	8 lbs, 4 kg	10 lbs, 4.5 kg
Electrical	120 V, 50 - 60 Hz
Warranty	2 Years

	BENBSH5001-1B	BENBSH5002-1B
Temperature Range	Ambient +5° - 105° C
Temperature Accuracy	± 0.1° C
Temperature Increments	0.1° C
Temperature Uniformity	± 0.3° C
Timer	1 minute to 48 hours or continuous
External Dimensions (W x D x H)	7 x 10 x 5 Inches, 18 x 25 x 13 cm	6.3 x 14.5 x 5 Inches, 16 x 36.4 x 13 cm
Weight	10 lbs, 4.5 kg	8 lbs, 4 kg
Electrical	120 V, 50 - 60 Hz
Warranty	2 Years
