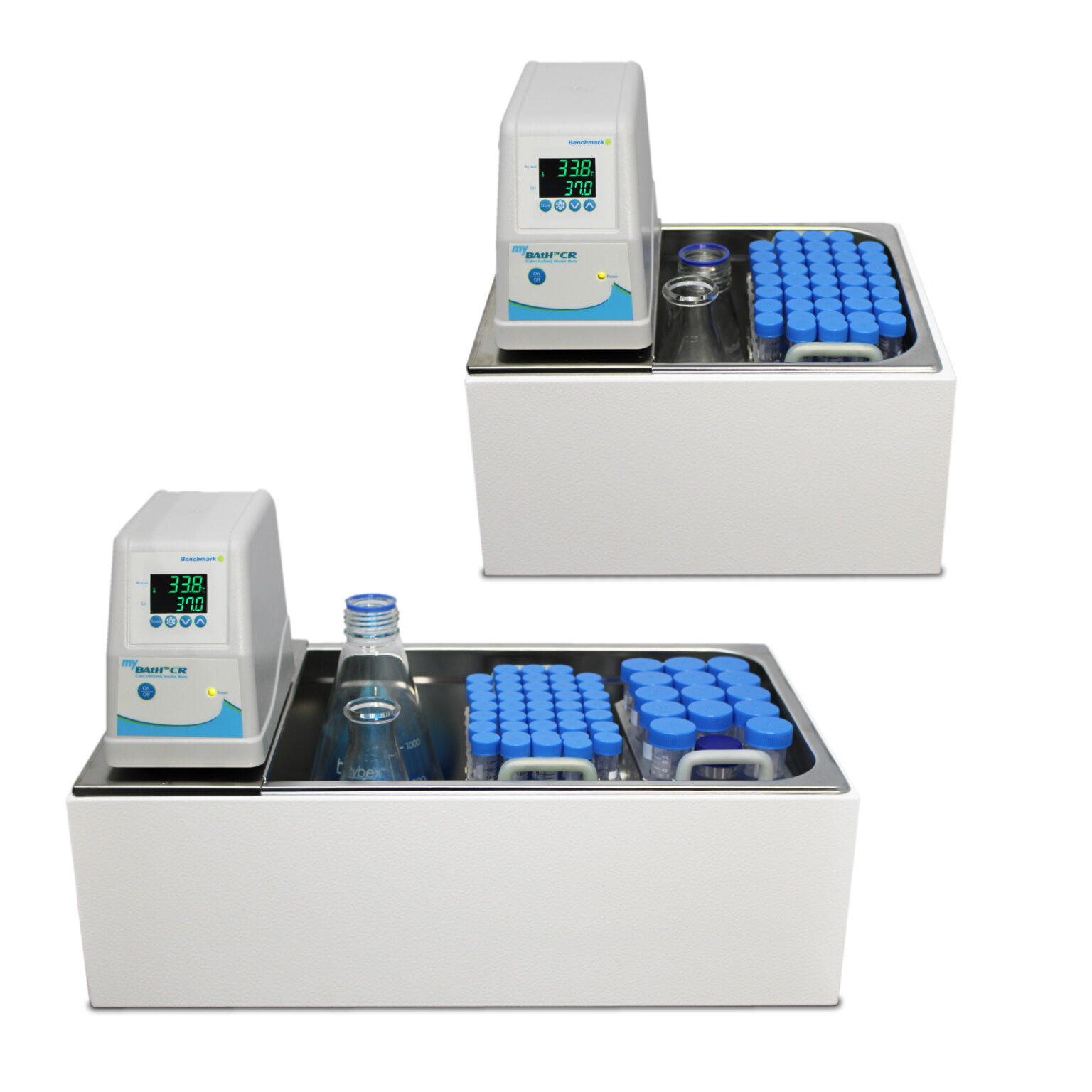

Benchmark’s myBath™ CR circulating water baths offer the same accuracy and convenience of our static myBath™ series, but with faster heat ramping and enhanced stability/uniformity. With constant circulation, water temperature is uniform throughout the chamber, eliminating “cold-spots” and allowing for quick recovery following insertion of frozen samples.
The myBath™ CR utilizes digital PID processing control that accurately maintains and adjusts the temperature to the set parameters. Once the desired temperature has been programmed, the instrument begins to heat, while indicating both the set and actual temperatures on the large, digital display.
The chamber and heating coil are constructed of stainless steel, resulting in easy cleaning. Optional accessories are available for securing test-tubes and an optional gabled lid can be purchased to improve efficiency. Available Models:
Product Code
Description
BENB2023-10
10L myBath CR Circulating Water Bath, Each
BENB2023-20
20L myBath CR Circulatng Water Bath, Each
BENB2023-GL10
Gabled lid for BENB2023-10 10L Circulating Water Bath Unit, Each
BENB2023-GL20
Gabled lid for BENB2023-20 20L Circulating Water Bath Unit, Each
BENB2000-4-T150
Optional Stainless Steel Tube Rack for 41 x 15ml Tubes, Each
BENB2000-4-T500
Optional Stainless Steel Tube Rack for 15 x 50ml Tubes, Each
10L myBath CR Circulating Waterbath
20L myBath CR Circulating Waterbath
Temperature Range
Ambient +5° to 100°C
Temperature Stability
+/- 0.2°C
Temperature Uniformity
+/-0.1°C
External Dimensions
(W x D x H)
13.2 x 10.8 x 11.9 inches, 33.5 x 27.5 x 30.3 cm
21.2 x 13.4 x 11.9 inches,
54 x 34 x 30.3 cm
Internal Dimensions
11.8 x 9.4 x 6 inches,
24 x 30 x 15 cm
19.2 x 11.4 x 6 inches,
49 x 29 x 15 cm
Weight
19.8 lbs, 9 kg
25.3 lbs, 11.5 kg
Electrical
120 V, 50-60Hz, 1200W
Warranty
2 years
